The OFFICIAL HOME PAGE of our 2 STROKE WIZARD TUNED PIPE CALCULATOR & 4STROKE HEADER WIZARD CALCULATOR SOFTWARE

SYSTEM REQUIREMENTS: FOR WINDOWS 7, 8 ,10,11 (32 & 64bit)

2 STROKE WIZARD DUAL POWER ADD-ON - Version 8

DUAL: WE NAMED THIS DUAL BECAUSE WE HAVE TWO POWERBANDS COMPETING FOR SUPREMACY, AND BOTH WIN, JUST AT DIFFERENT RPM...

“2 DIFFERENT POWERBANDS MERGED INTO 1 WIDE BAND MAKE FOR A MUCH WIDER POWERBAND”

CALCULATE HIGH TORQUE EXPANSION CHAMBERS! USING TWIN CONVERGENT CONES WITH EXACTLY CALCULATED RESONANCE TO MAKE ANY TWO STROKE ENGINE MAKING POWER 2000 TO 3500 RPM  EARLIER COMPARED TO THE CONVENTIONAL EXPANSION CHAMBER. A VERY WIDE POWERBAND AND MORE “USABLE POWER” MAKE A GREAT ENGINE FOR APPLICATIONS WHERE A WIDER POWERBAND IS NEEDED.

2 DIFFERENT POWERBANDS MERGED INTO 1 WIDE BAND MAKE FOR A MUCH WIDER POWERBAND, GIVING A MASSIVE ADVANTAGE IN TIGHT TRACKS AND NON GEARED APPLICATIONS. Also improved CVT Drive Performance and Economy, giving a more driveable experience!

PLEASE NOTE: THIS IS A ADD-ON SOFTWARE AND NEED THE RESULTS FILE SAVED FROM 2 STROKE WIZARD TUNED PIPE VERSION 8 TO BE LOADED. IF YOU SAVED THE FILE WITH A PREVIOUS VERSION, FIRST LOAD IT TO VERSION 7 AND SAVE AGAIN BEFORE OPENING WITH THE DUEL POWER ADD-ON.

IF YOU DO NOT HAVE 2 STROKE WIZARD TUNED PIPE VERSION 8 TAKE ADVANTAGE OF OUR SPECIAL OFFER ON THE PAGE TO GET BOTH SOFTWARE’S AT A DISCOUNT.

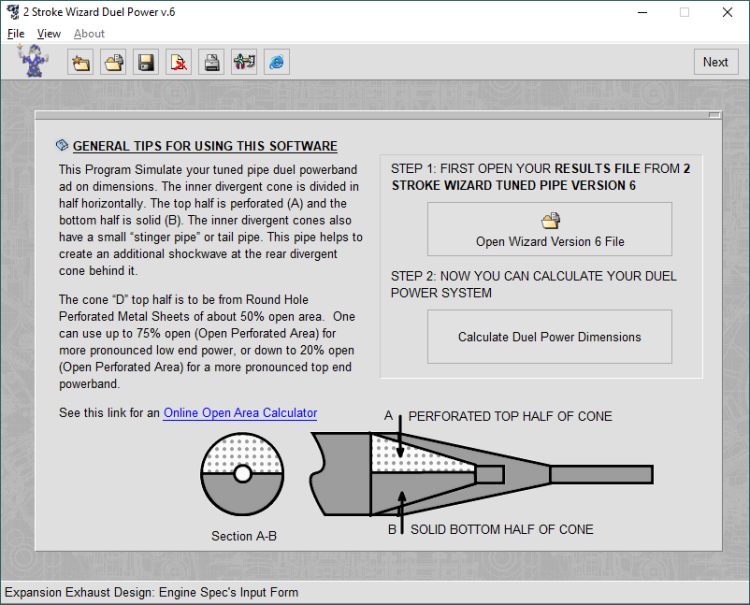

HOW THE DUEL POWER WORKS IN A NUTSHELL

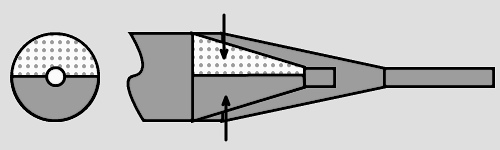

USING TWIN CONVERGENT (OR BAFFLE) CONES WITH THE FIRST CONE OF PERFORATED SHEET (DRILLED ROUND HOLES) FOLLOWED BY A CHAMBER AND FINAL CONE THAT GIVE THE LOW END BOOST, YOU GET A VERY WIDE POWERBAND.
THE SOFTWARE EXACTLY CALCULATE THE CORRECT DIMENSIONS SO THAT THE RESONANCE BETWEEN THE 2 CONES DO NOT DILUTE THE AMPLITUDE OF THE WAVES (WHICH WILL DEGRADE PERFORMANCE BADLY IF THAT HAPPEN). THE 2 CONES HAVE DIFFERENT ANGLES, DESIGNED TO HELP WITH THE AIM OF A MUCH BROADER POWERBAND, ALSO THE EXTENSION BELLY HAVE A SMALLER DIAMETER THAT IS EXACTLY CALCULATED FROM THE SIMULATION DATA PULLED FROM THE VERSION 8 FILE.

THIS ALL BEING CALCULATED WITH MANY PARAMETERS FOR CORRECT SIZES OF THE EXTENSION CHAMBER. CORRECT LENGTHS, ANGLES AND DIAMETERS AND VOLUMES (A FEW MILLIMETERS CAN MAKE THE DIFFERENCE BETWEEN GOOD AND BAD!) MAKES A WELL PERFORMING DUAL POWERBAND PIPE.

THIS SYSTEM CAN BE USED ON ANY TWO STROKE ENGINE FROM STREET TO FULL RACE. ANY RPM! YOU WILL BE SLIGHTLY DOWN ON PEAK HORSEPOWER, BUT HAVE A MUCH WIDER POWERBAND MAKING UP FOR IT.

THERE IS A LINK TO AN ONLINE CALCULATOR TO CALCULATE YOUR FIRST CONES PERFORATED SHEET “OPEN AREA” WHICH IS THE DECIDING FACTOR OF GAINING LOTS OF HORSEPOWER ON THE LOW END OR SHIFTING THE POWER HIGHER UP. A 40% OPEN AREA WILL GIVE MORE TOP END HORSEPOWER WHEREBY A 80% OPEN AREA PERFORATED SHEET WILL GIVE A MORE PRONOUNCED LOW END BOOST. THE OPEN AREA IS GOVERNED BY THE SIZE, PATTERN AND SPACING OF THE HOLES.

ANY TWO STROKE ENGINE MAKING POWER 2000 TO 3500 RPM  EARLIER COMPARED TO A CONVENTIONAL EXPANSION CHAMBER WILL MAKE FASTER LAPS IN MOST SITUATIONS!

A DUAL POWER CONE CUT OPEN AFTER PROLONGED USE (1 FULL YEAR AND STILL PERFORMING AS GOOD AS DAY ONE!)

PLEASE NOTE! :
THIS IS A ADD-ON SOFTWARE AND NEED 2 STROKE WIZARD TUNED PIPE V.8 TO WORK!
Buy the PACK OFFER to use this.
